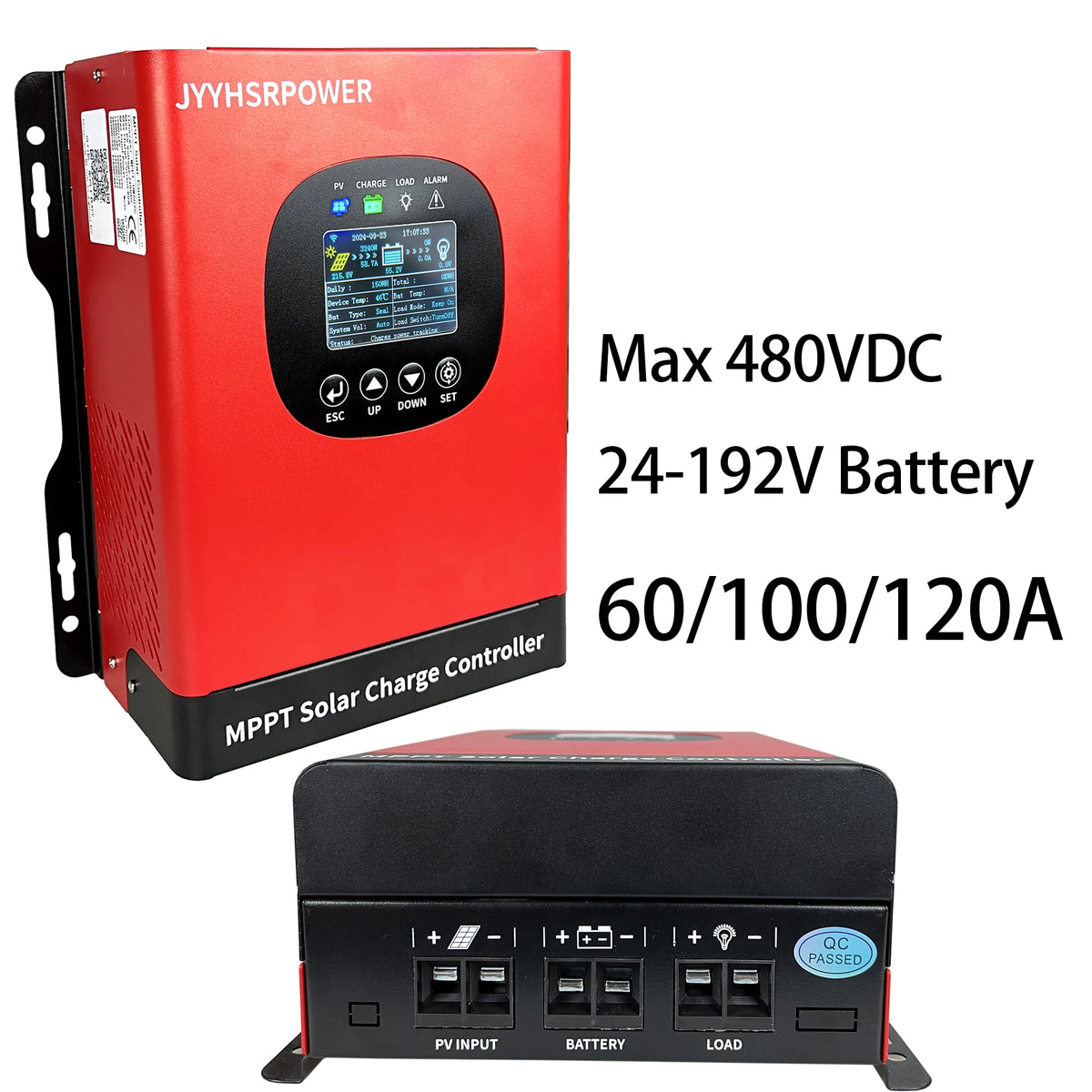

HXCONTROLLER MPPT Solar Charge Controller 480VDC Built In WIFI Monitor For 24V-192V Lifepo4 Lithium GEL Lead Acid GEL

HXCONTROLLER MPPT Solar Charge Controller 480VDC Built In WIFI Monitor For 24V-192V Lifepo4 Lithium GEL Lead Acid GEL

Regular price $242.99 USD
Regular price $0.00 USD Sale price $242.99 USD
Sale Sold out
Shipping calculated at checkout.
Current
Ships From
Quantity

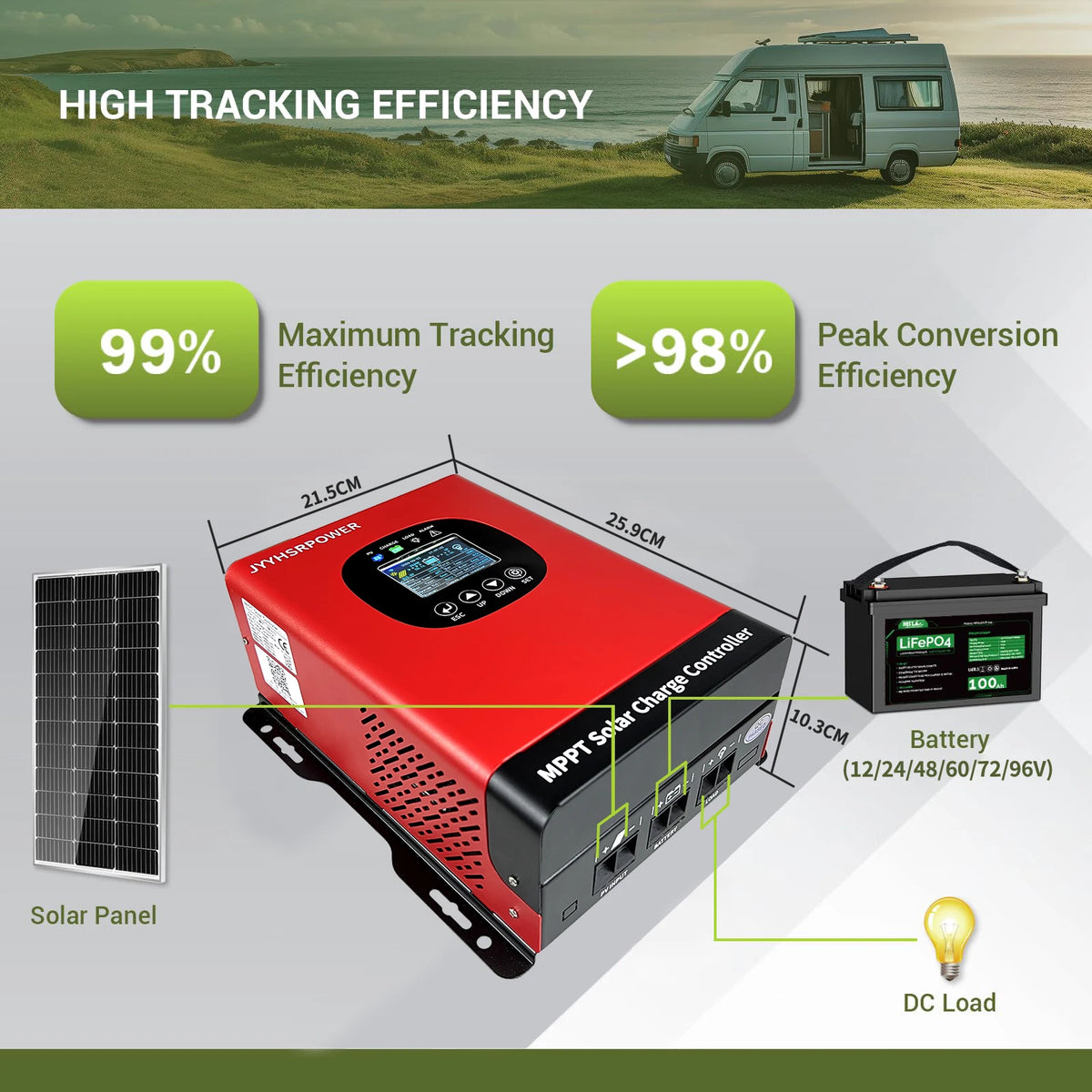

Get more from your solar panels with MPPT tracking that adjusts to changing light and helps you capture available energy.

  • Choose your charging capacity: Select a 60A, 100A, or 120A model, with charging current adjustable to match your setup.

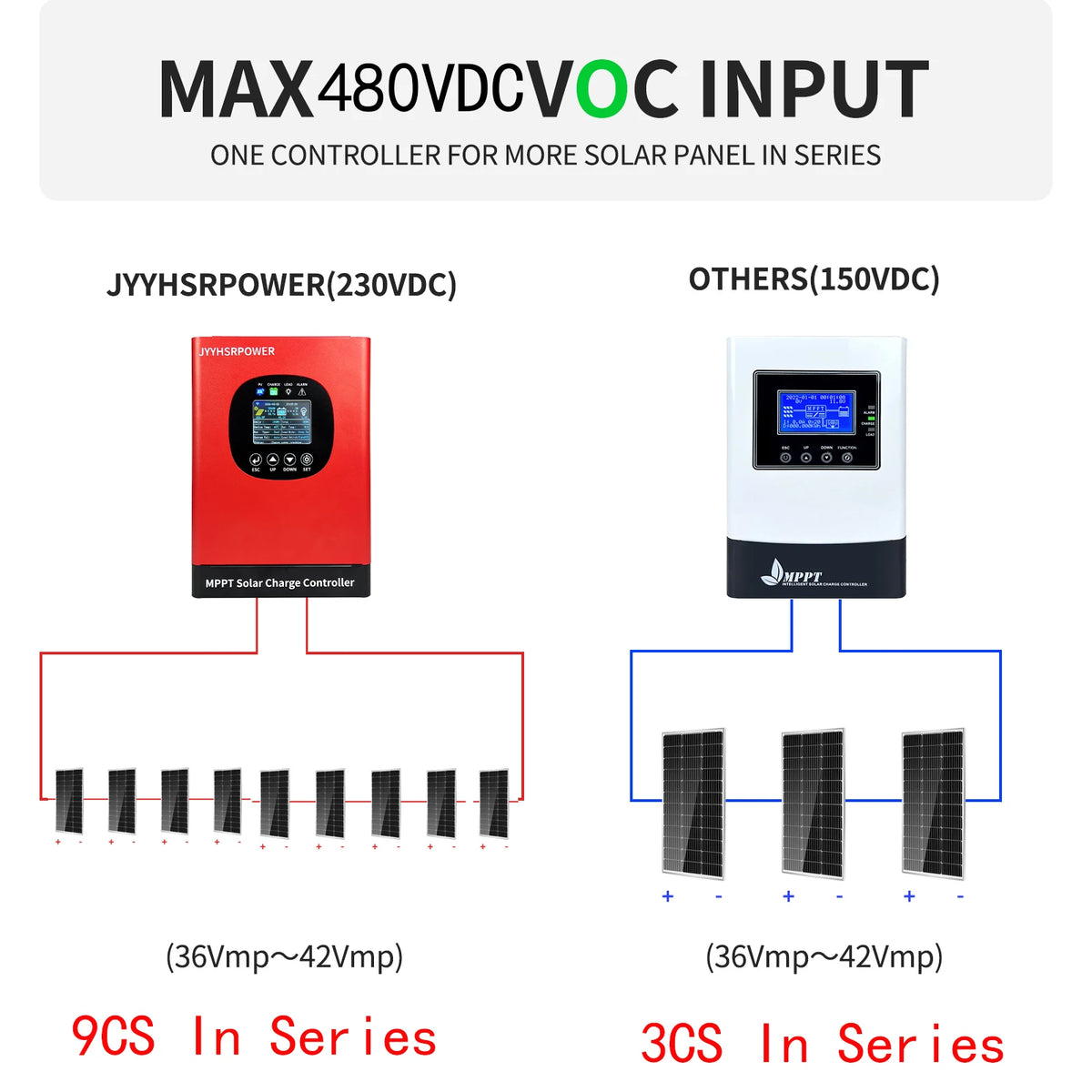

  • Flexible solar input: The controller supports up to 480VDC panel open-circuit voltage, giving you more options for configuring your solar array.
  • Broad battery compatibility: Use supported 24–192V battery systems with lithium, LiFePO4, sealed, gel, flooded, or adjustable user-set battery parameters.
  • Monitor from your phone: Built-in Wi-Fi connects to the Tuya app on iOS or Android, so you can view system information and adjust parameters.

Model

60A

100A

120A

Maximumphotovoltaic voltage

480VDC(Solar Panel Open Corcuit Voltage)

Charging current

0-60A adjustable

0-100A adjustable

0-120A adjustable

battery Type

Sealed battery

(24/36V/48V
Automaticrecognition +adjustable 24/36/48/60/72/84/96/108/120/132/144/156/168/180/192)

Gel battery

Watering battery

Lithium ironphosphate battery

12V/24V/36V/48V/60V/72V84V/96V

Ternary lithium battery

Maximuminput power ofsolar panel


1440W/24V
2880W/48V
3600W/60V
4320W/72V
5760W/96V
11520/192V


2400W/24V
4800W/48V
6000W/60V
7200W/72V
9600W/96V
19200W/192V


2880W/24V
57600W/48V
7200W/60V
8640W/72V
11520W/96V
23040W/192V

Advanced Setting For charging voltage

9-240V Adjustable

Charging method

Power tracking, fast charging, floating charging

Start charging

Photovoltaic voltage > battery voltage+ 2V

DC output current

40A

Operating temperature

Max 65 degree

Cooling method

Air Ccooling, Fan

Altitude

0-3000m

Product size

262x218x102mm

Gross Weight

2.8kg

5kg

5kg
